MinnTech PlasticsThermoforming Production Process & Manufacturing
MinnTech Plastics transforms raw plastic sheet into precision formed packaging through a controlled sequence of heating, forming, trimming, and inspection \u2014 delivering consistent quality from prototype samples through high volume production runs.
MinnTech Plastics operates a full cycle thermoforming production facility in Rogers, Minnesota \u2014 processing RPET and CPET sheet stock into finished packaging through a tightly controlled sequence of heating, forming, trimming, and multi point quality inspection. Whether your project calls for 500 prototype samples or a million unit production order, our equipment and scheduling systems are built to deliver repeatable quality on time.

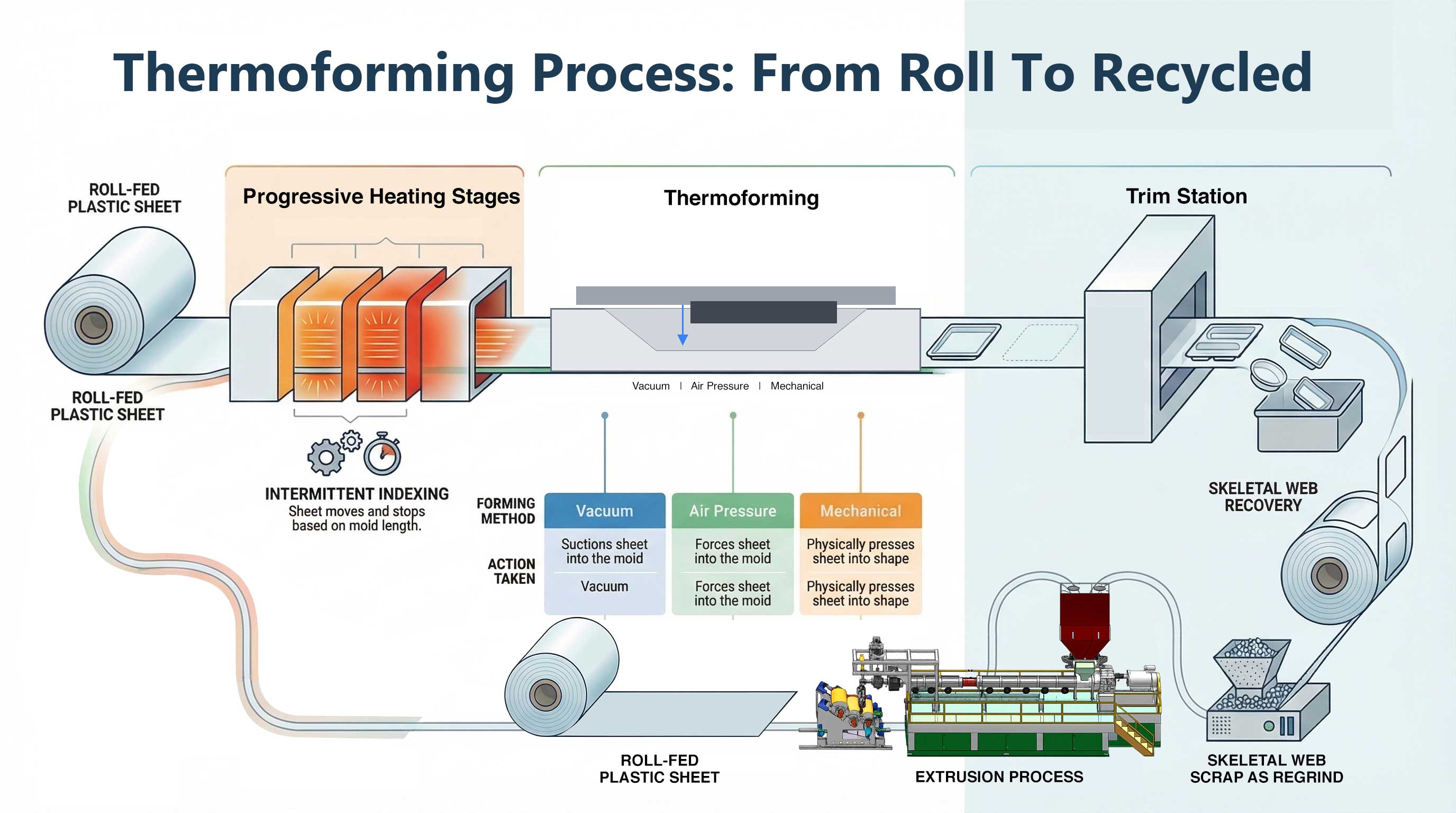

Production Process: Step by Step
Each stage is engineered for repeatability, efficiency, and traceability \u2014 from raw material receipt to palletized shipment.
Material Preparation & Sheet Extrusion
Raw resin pellets are dried, blended, and extruded into sheet stock at precise gauge tolerances. Sheet rolls are inspected for clarity, thickness uniformity, and surface defects before entering the forming queue.
Sheet Heating
Sheet stock is indexed into the oven zone where ceramic or quartz heaters bring the material to its optimal forming temperature. RPET require 280–320 °F; CPET demands 350–400 °F. Precise zonal temperature control prevents hot spots and ensures uniform pliability.
Vacuum & Pressure Forming
The heated sheet is transferred to the forming station where vacuum draws the material against the mold surface. For complex geometries, supplemental air pressure (up to 60 PSI) is applied above the sheet to drive sharper detail, tighter corner radii, and more uniform wall distribution.
Cooling & Part Stabilization
Formed parts remain on temperature controlled molds while cooling fans and chilled water circuits solidify the geometry. Cooling time is calibrated per material to prevent warping, shrinkage, and stress whitening.
CNC Trimming & Die Cutting
Parts are trimmed to final dimensions using CNC controlled steel rule dies or matched metal trim tooling. Tight trim tolerances ensure clean flange edges for heat seal and snap fit lid applications.

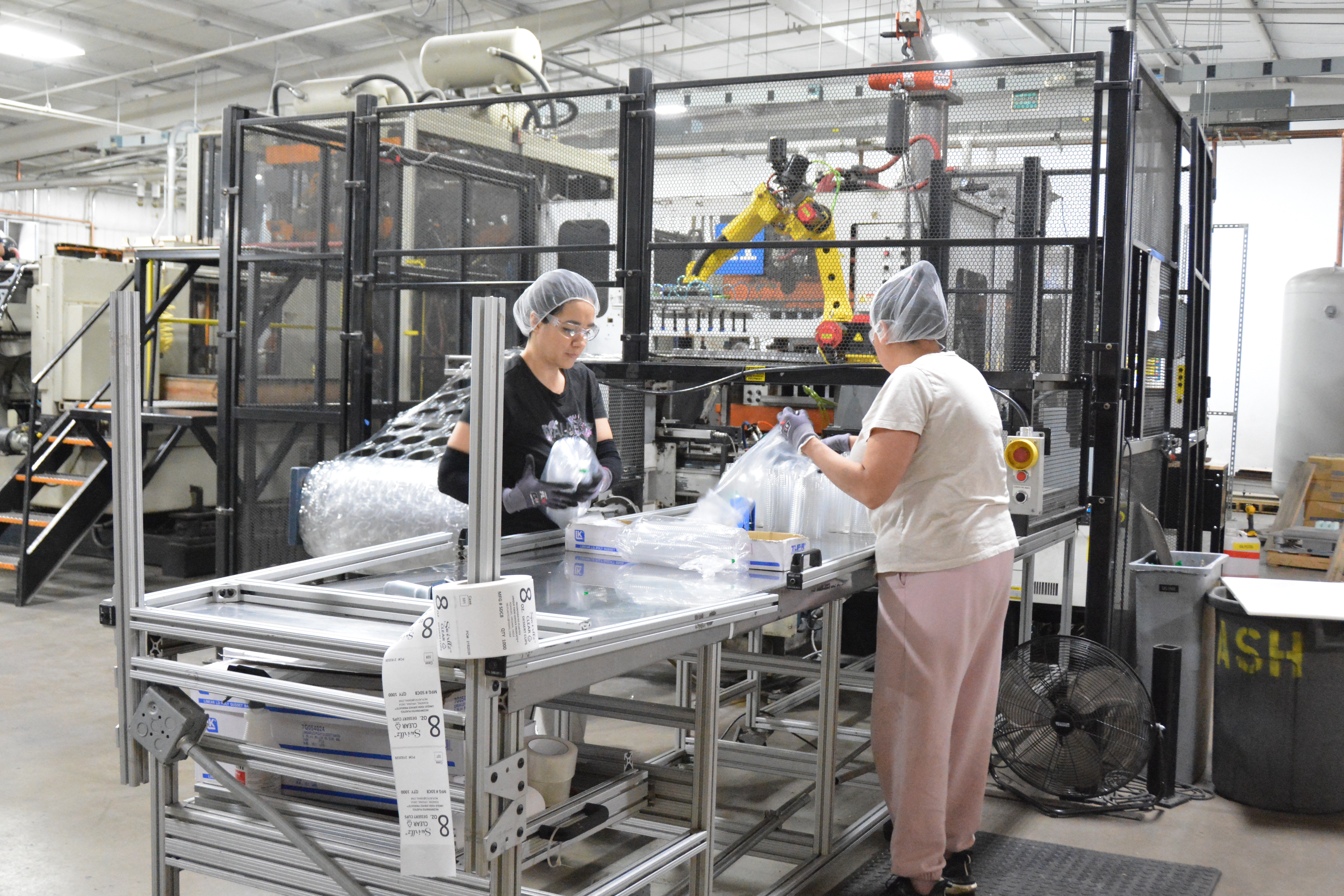

Quality Inspection & Packaging
Every lot undergoes multi point quality inspection — dimensional verification, visual defect screening, and functional testing. Approved parts are counted, stacked, and case packed to customer specified configurations for palletized shipment.

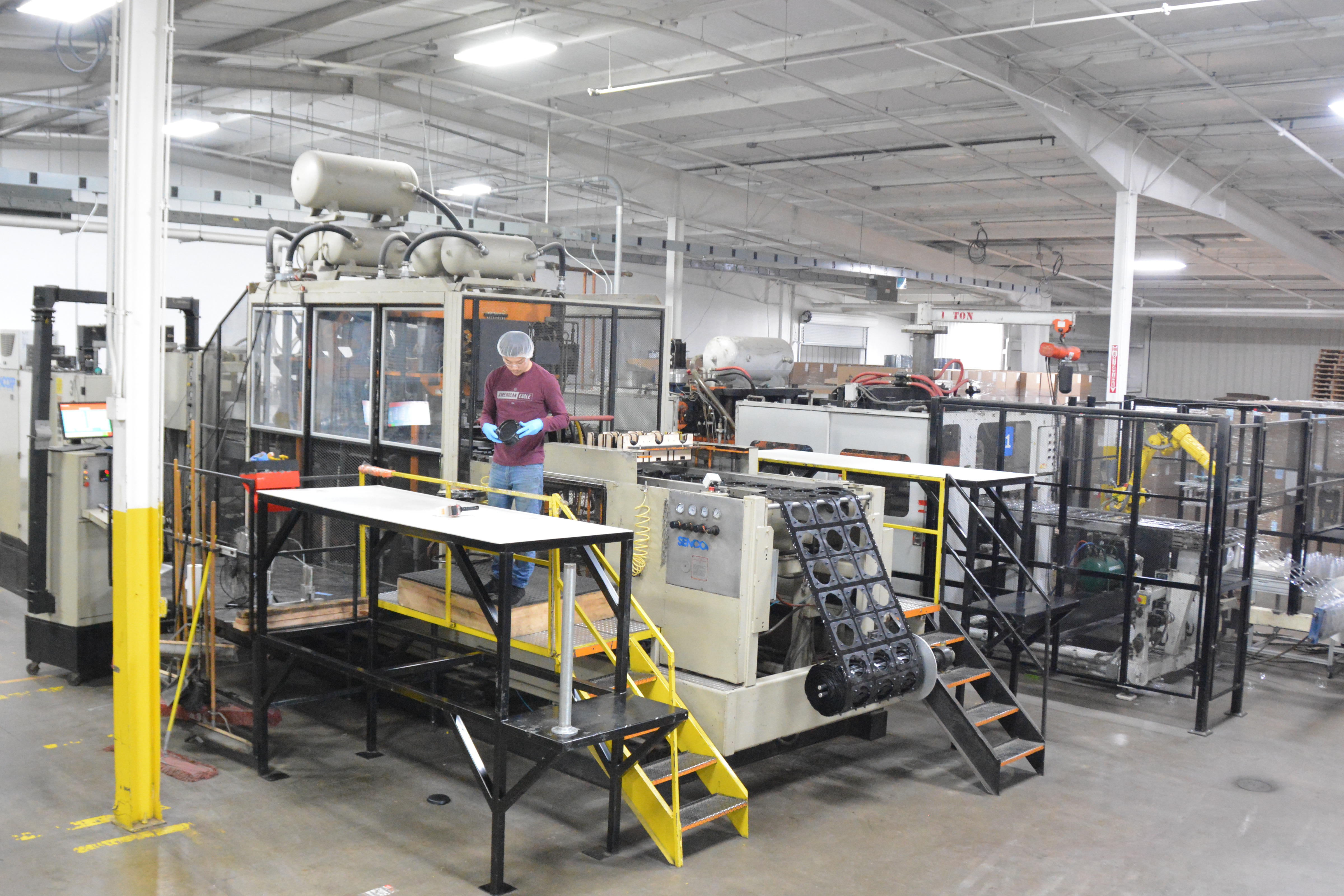

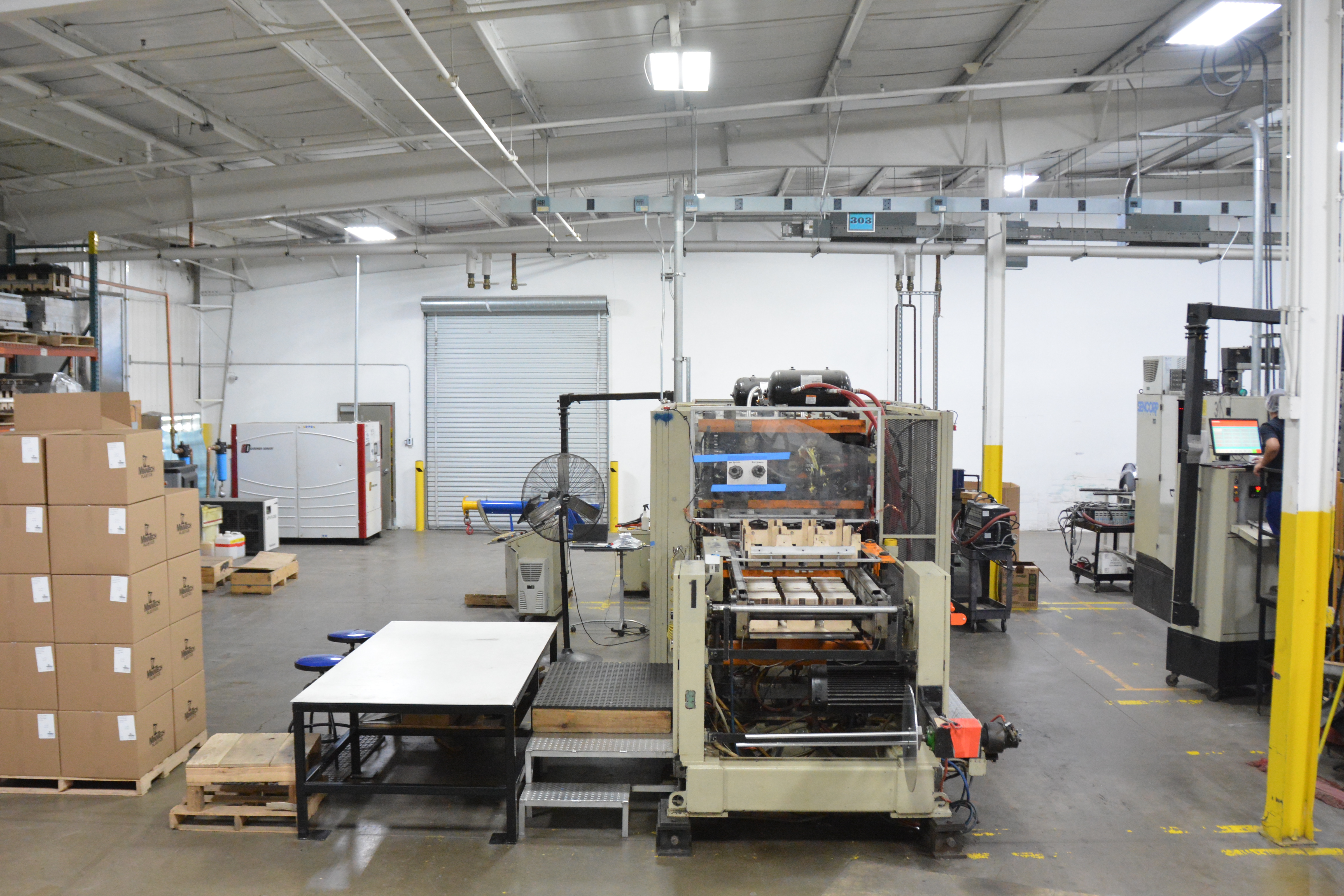

Thermoforming Technology & Equipment
MinnTech operates inline thermoforming equipment configured for both vacuum forming and pressure forming. Our machines process sheet widths up to 36 inches and accommodate gauge ranges from 8 mil to 80 mil, covering everything from thin gauge deli lids to heavy gauge industrial trays.
Vacuum Forming
Vacuum forming evacuates air between the heated sheet and the mold, drawing the material into the cavity under atmospheric pressure. This method is well suited for shallow draw parts like produce trays, bakery containers, and single compartment meal trays where moderate wall uniformity is acceptable.
Pressure Forming
Pressure forming supplements vacuum with positive air pressure above the sheet — typically 30–60 PSI. The additional force drives the material deeper into mold details, producing sharper textures, crisper lettering, and more consistent wall thickness in deep draw and multi compartment designs.
Temperature Control & Process Monitoring
Each oven zone is independently controlled with closed loop PID feedback. Real time sheet temperature is monitored via infrared sensors, ensuring the material reaches its optimal forming window regardless of ambient conditions or gauge variation across the roll.
Quality Control & Inspection
Quality is verified at every stage of the production cycle — not just at the end. MinnTech employs a multi point inspection protocol that catches defects early, reduces scrap, and ensures every shipped part meets dimensional and cosmetic specifications.
Incoming Material Verification
Every sheet lot is verified against the supplier Certificate of Analysis (COA) for gauge, clarity, and resin composition. Material that falls outside specification is quarantined and returned before it enters the forming queue.
In Process Dimensional Checks
Operators perform dimensional sampling at regular intervals using digital calipers and go/no-go gauges. Critical dimensions — flange width, cavity depth, wall thickness — are tracked on statistical process control (SPC) charts to detect drift before it produces out of spec parts.
Final Audit & Lot Release
Before case packing, a final audit inspects a statistically significant sample for visual defects (scuffs, thin spots, trim burrs) and dimensional compliance. Only lots that pass all checkpoints are released for shipment, with inspection records retained for traceability.
Scalable Production & Flexible Scheduling
Whether you need 500 prototype samples or 1 million production units, MinnTech scales output to match your demand. Our scheduling system optimizes machine utilization, minimizes changeover downtime, and maintains consistent quality across run volumes.
Prototype & Short Runs
Low volume runs use the same production grade tooling and forming parameters as full scale orders, ensuring prototype samples accurately represent final production quality. This eliminates the gap between sample approval and volume output.
High Volume Production

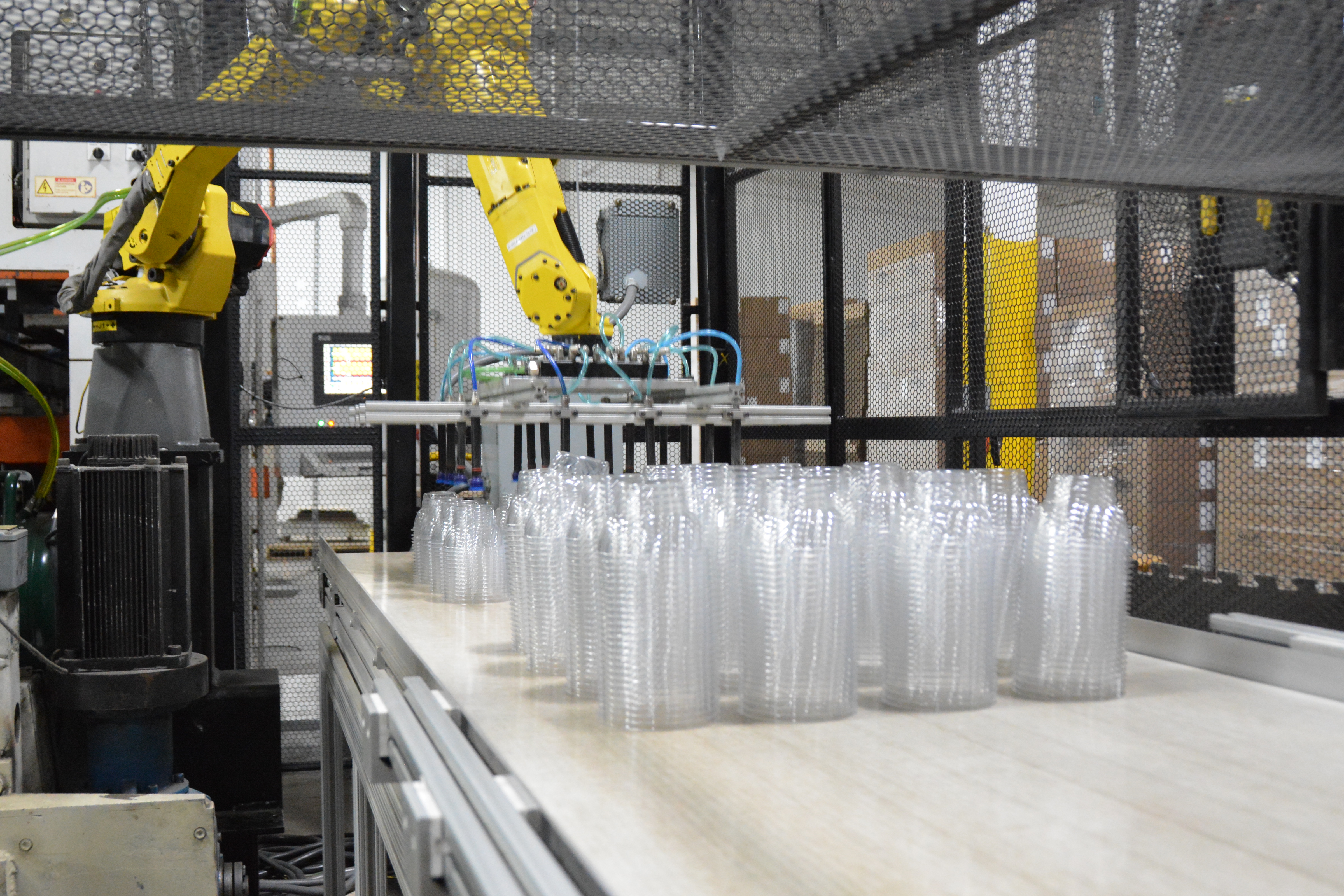

Multi cavity molds and high speed forming cycles support throughput rates of tens of thousands of parts per shift. Automated stacking and counting systems maintain pace without manual bottlenecks.
Changeover Efficiency
Quick change mold mounting and prestaged material rolls allow tool changeovers in under 30 minutes. This flexibility supports mixed SKU production schedules without significant downtime between product runs.
Packaging, Palletization & Logistics
Finished parts are case packed and palletized to customer specifications, optimized for freight efficiency and warehouse compatibility. MinnTech coordinates directly with carriers to ensure on time delivery to your facility or distribution center.

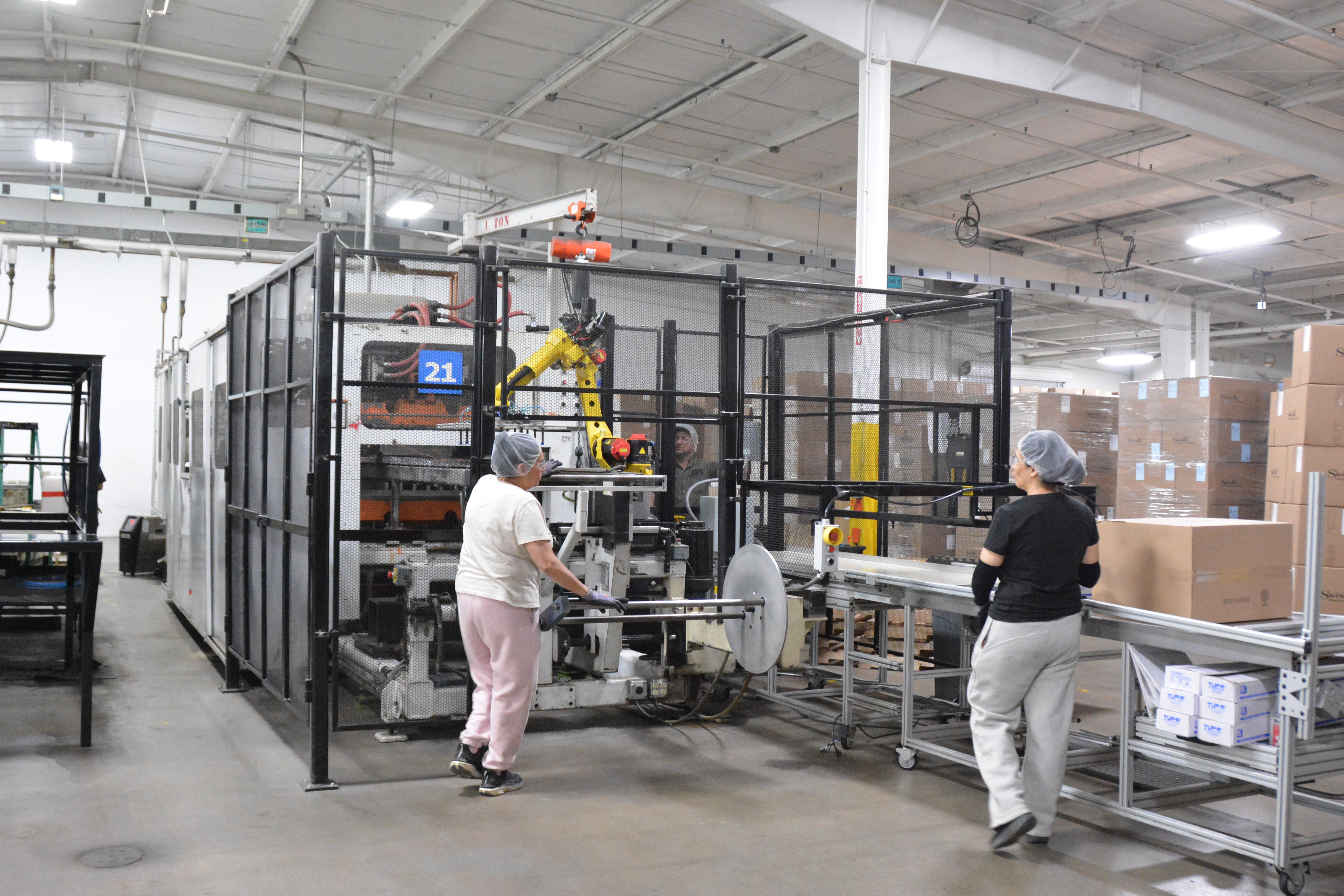

Custom Case Packing
Parts are counted, nested, and packed into corrugated cases configured to your fill line requirements. Case counts, orientation, and liner specifications are documented in the packaging standard and maintained across all repeat orders.

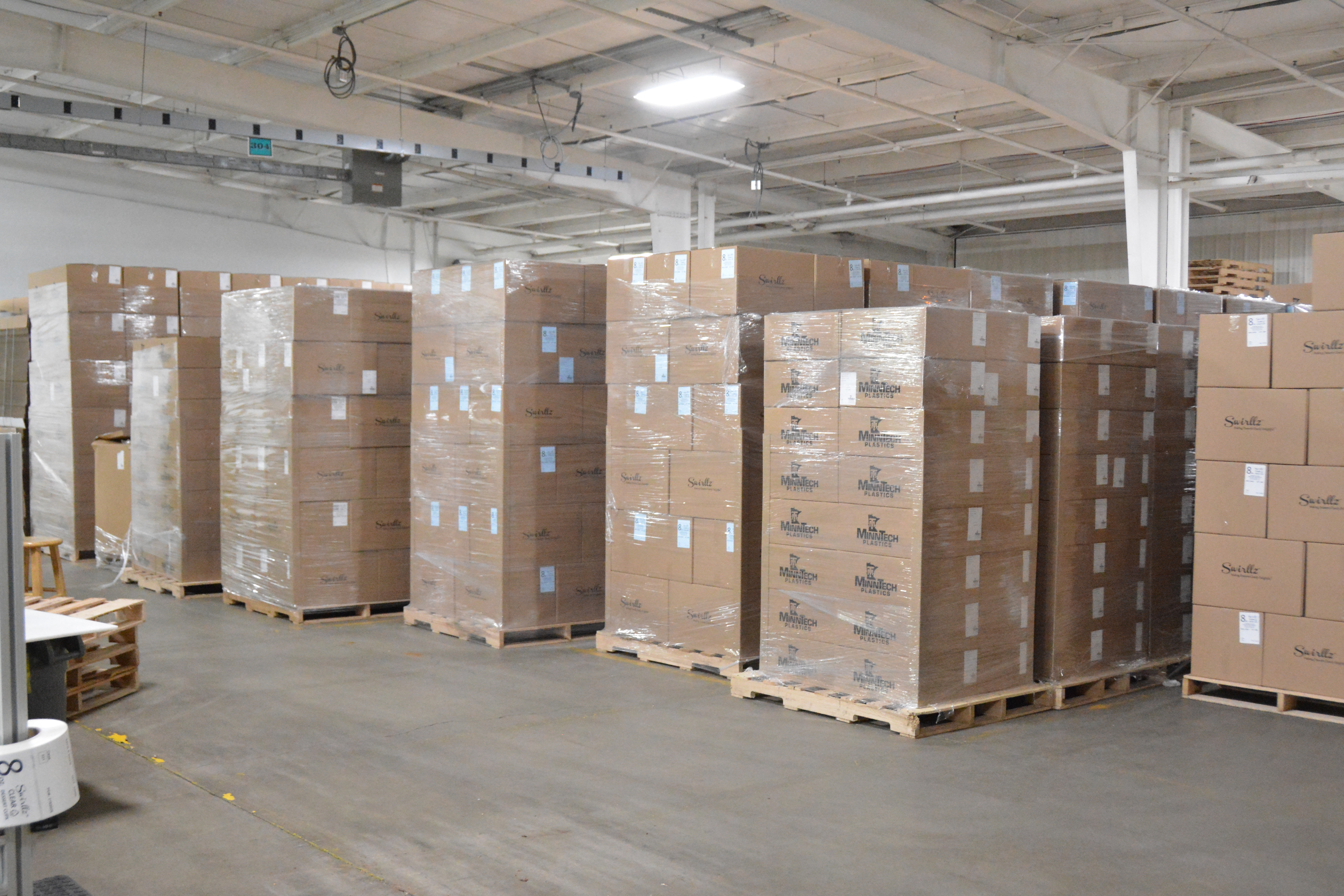

Palletization & Freight Optimization
Standard 48″ × 40″ GMA pallets are loaded to maximize cube utilization within truck weight limits. Stretch wrapping and corner boards protect shipments during transit. Pallet patterns are optimized to reduce freight cost per unit.
Inventory & Release Programs
For customers with recurring demand, MinnTech offers blanket order inventory programs with scheduled releases. Finished goods are warehoused onsite and shipped on a prearranged cadence, reducing your carrying costs and ensuring uninterrupted supply.
Material Processing Parameters
Each thermoforming material requires distinct temperature profiles, forming methods, and cycle times. The table below summarizes key production parameters across the five resins MinnTech processes.
| Material | Forming Temp | Forming Method | Typical Gauge | Cycle Time | Notes |
|---|---|---|---|---|---|
| RPET | 280–320 °F | Vacuum / Pressure | 10–30 mil | Fast | 30–100% PCR; recycled content compliance |
| CPET | 350–400 °F | Pressure (preferred) | 18–40 mil | Moderate | Dual ovenable to 400 °F; crystallized structure |
Need help selecting the right material for your production run? Explore our materials guide or contact our production team.
Production Process FAQs
Common questions about MinnTech's thermoforming production capabilities.
MinnTech operates both vacuum forming and pressure forming equipment. Vacuum forming is used for standard trays and containers. Pressure forming applies additional air pressure above the sheet, producing sharper detail, tighter radii, and more consistent wall thickness for complex multi compartment and deep draw designs.
We thermoform RPET and CPET. Each resin requires specific temperature profiles, forming pressures, and cycle times. Our equipment supports rapid changeovers between materials, accommodating mixed material production schedules within the same shift.
Every run undergoes multi point inspection: incoming material certification, in process dimensional sampling with SPC tracking, visual defect screening at the trim station, and a final lot audit before case packing. Inspection records are retained for full traceability.
Standard production lead times range from 2 to 4 weeks after tooling approval, depending on volume and material availability. Repeat orders with existing tooling typically ship within 1 to 2 weeks. Rush schedules are available for time sensitive product launches.
Yes. Our facility supports prototype runs as low as 500 units through high volume orders exceeding one million units. Efficient changeover procedures, multi cavity tooling, and flexible scheduling allow us to serve both ends of the volume spectrum without quality compromises.
